Specifications
| Model |

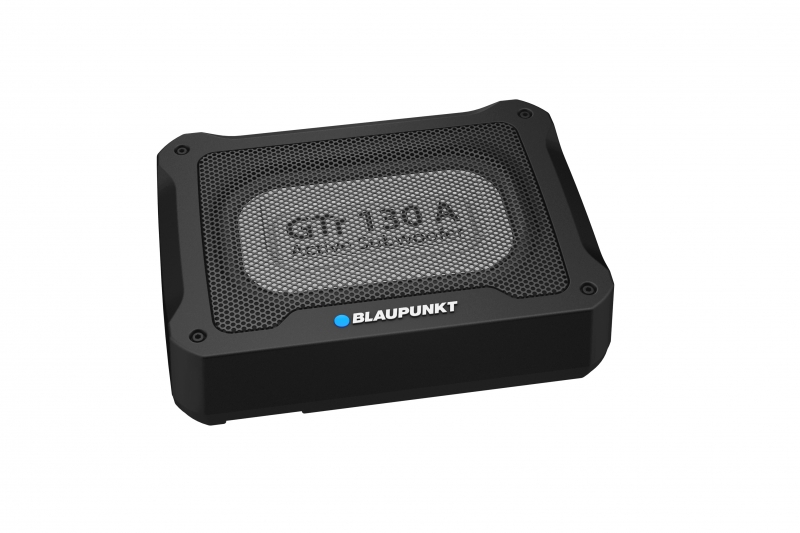

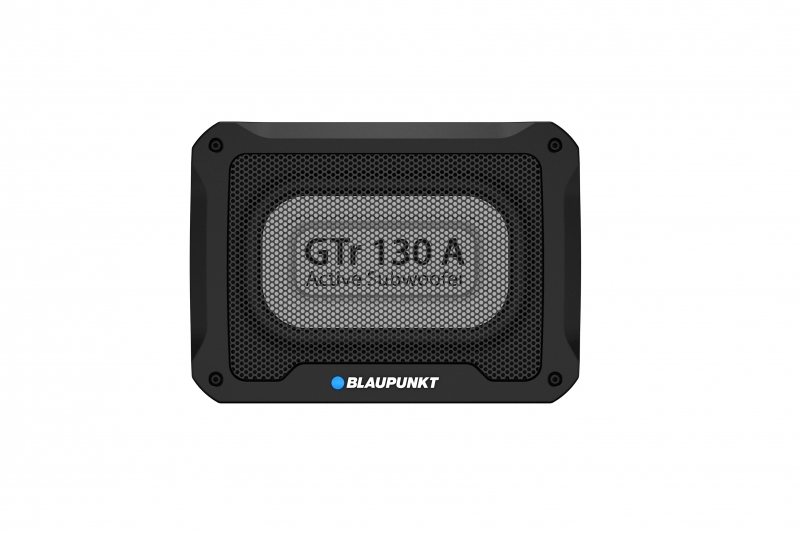

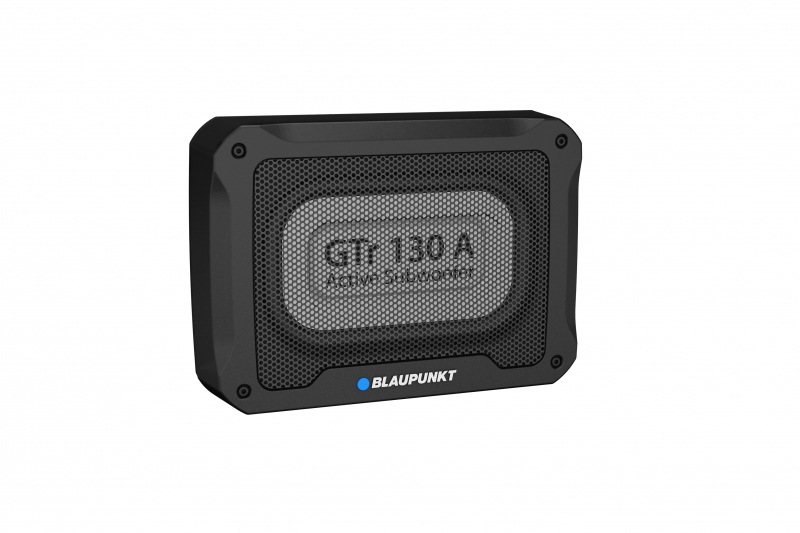

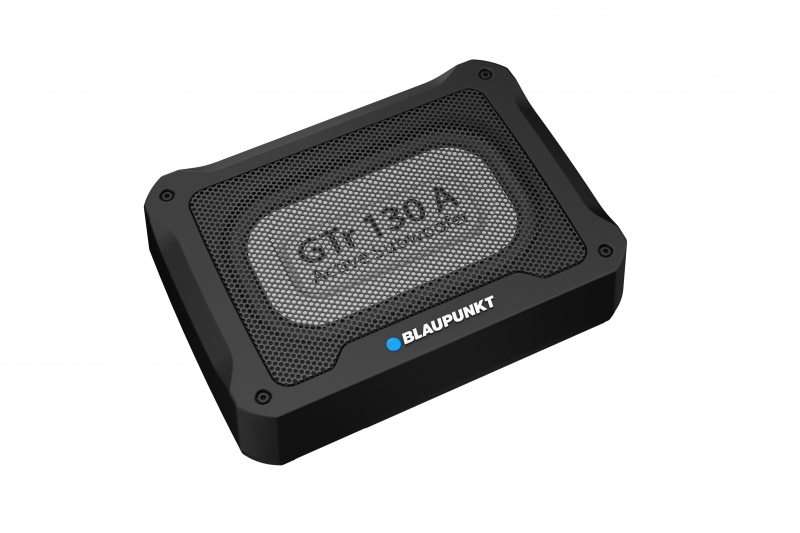

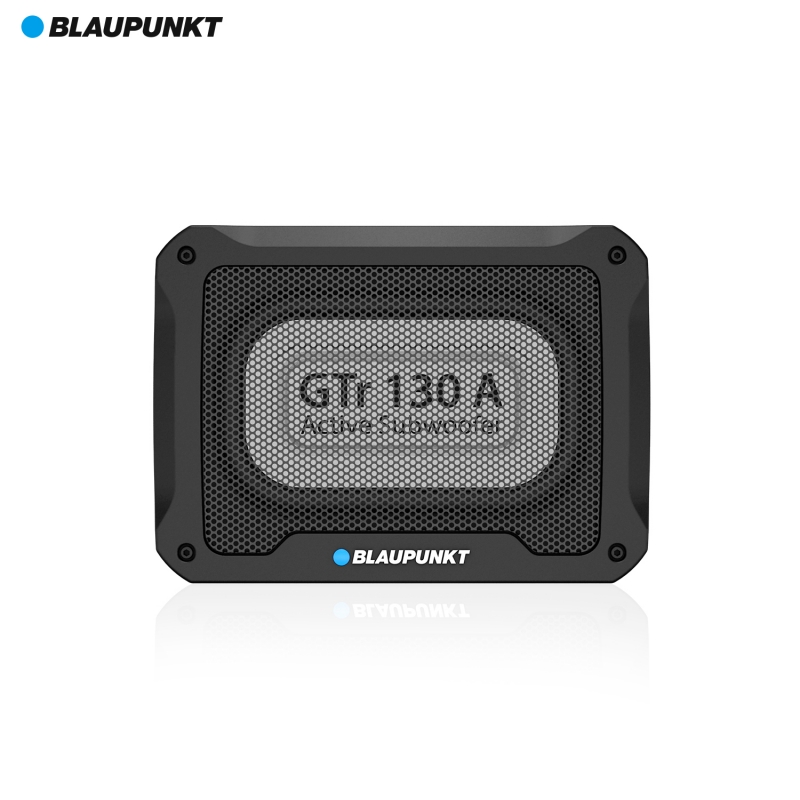

                          GTr 130 A |

| Speaker Size | 5"x 8" (214.5mm x 135mm) |
| Max Output Power | 300W |
| RMS Output Power | 130W |
| Built-in Amplifier Type | Class AB |
| Voice Coil |
                          Single Voice Coil |

| Sensitivity | 92dB |
| Impedance | 4 Ω |
| Frequency Response | 40Hz-150Hz |
| S/N Ratio | 91dB |
| Low Pass Filter | 50Hz-100Hz |
| Operating Voltage | 14.4V(10V-16V) |
| Phase Switch | 0°/180° |
| Fuse | 10A |
|
                          Automatic ON/OFF |

                          Hi-level Input Only |

|
                          Gain |
                        200mV-6V |
| Input Sensitivity | Speaker Input 0.8V/RCA Input 82mV |
| Subwoofer Cone Material | Aluminum |
| Subwoofer Magnet Material | Ferrite |
| Enclosure Material | Sealed Cast Aluminum Enclosure |
| Dimensions | 280x200x74mm |
| Net Weight | 3.7kg |
